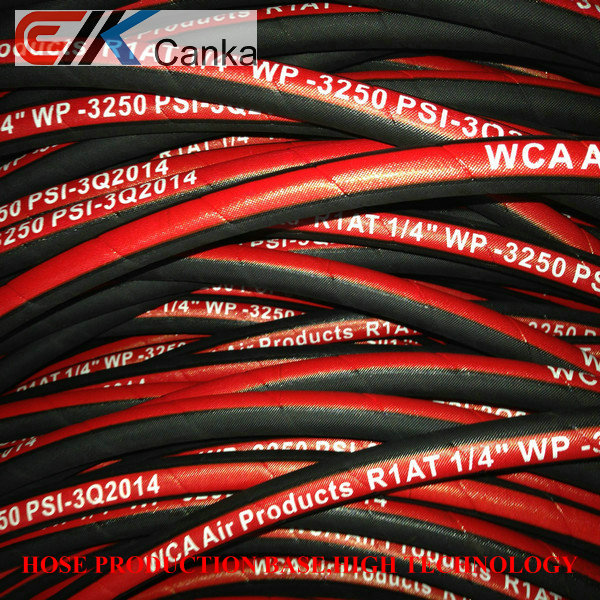

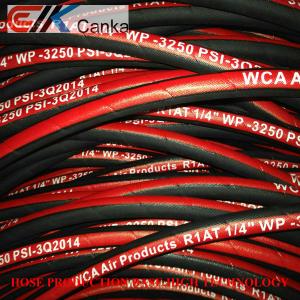

Qingdao Canka Flex EN 853 1SN Hydraulic Hose

Product Categories

Qingdao Canka Rubber Technology Co.,Ltd

Contact Now

Name: Qingdao Canka Flex EN 853 1SN Hydraulic Hose
Brand: Canka
Price: 1 USD

Place of Origin : Qingdao

Brand Name : Canka

Model Number : EN 853 1SN

Price : 0.4-6.6 USD

Packaging Details : Seaworthy packing film

Delivery Time : one month

Payment Terms : FOB

Supply Ability : 300000 meters

MOQ : 1500 meters

Contact Now

CONSTRUCTION: This hose consists of an inner tube of oil syntheric rubber,single wire braid reinforcement,and an oil and weather resistant synthetic rubber cover.
APPLICATIONS: Hose range suitable to carry bydraulic fluids such as glycol,mineral oils、fuels、lubrication、emulsion、 hydrocarbons etc.
WORKING TEMPERATURE: From-40℃ up to +100℃
Nominal Diameter∮		Inside Diameter∮	Reinforcement Diameter∮	Outside Diameter∮	Working Pressure		Proof Pressure	Burst Pressure	Bend Radius
inch	dash	mm	mm	mm	bar	psi	bar	bar	mm
3/16	5	4.6-5.4	8.9-10.1	**	250	3625	600	1000	89
1/4	6	6.2-7.0	10.8-11.4	12.7-13.5	225	3263	540	900	102
5/16	8	7.7-8.5	12.5-13.1	14.6-15.4	215	3118	510	850	114
3/8	10	9.3-10.1	14.5-15.1	16.7-17.5	180	2610	435	720	127
1/2	12	12.3-13.5	17.7-18.3	19.8-20.6	160	2320	385	640	178
5/8	16	15.5-16.7	21.1-21.7	23.2-24.0	130	1885	315	520	203
3/4	19	18.6-19.8	24.6-25.4	26.9-27.7	105	1523	255	420	241
1	25	25.0-26.4	32.1-32.9	34.6-35.4	88	1276	210	350	305
1-1/4	31	31.4-33.0	40.8-41.6	43.3-44.1	63	914	150	250	419
1-1/2	38	37.7-39.3	47.2-48.0	49.7-50.5	50	725	120	200	508
2	51	50.4-52.0	59.9-60.7	62.4-63.2	40	580	96	160	635

Qingdao Canka Flex EN 853 1SN Hydraulic Hose
